Overview

Parametric search Portlet

Parametric search Portlet allows you to define customized search interfaces and define a query template to run parametric Content Queries based on various user input.

Details

In contrast to the Context search Portlet that is presented in the demo install http://localhost/features/search , which displays a simple search textbox and accepts query texts in Query syntax, the Parametric search Portlet allows the builder to create more sophisticated search interfaces, with labels and multiple textboxes, and define templated queries that depend on the user input.

Query configuration

The Parametric search Portlet inherits from the Content collection Portlet, and uses its children query filter functionality to utilize search. The additional query defined with the Query template property will be appended to the Children query filter.

• To configure the portlet to search under a specific path:

• use the Context binding properties (Context binding tab) to select root search path,
• and check the All children property (Collection tab) to include every content under the specific path, not just direct children.

• To define a custom user interface:

• create an ascx file with asp.Net controls,
• reference it with the Input Renderer property (Render tab).

• To set up a query to work together with the defined user interface:

• define parametric query with Query Template property (Query admin tab) and use the %controlID% markup in the query to mark user inputs, where controlID corresponds to the ID of an asp.Net control (ie. TextBox) defined in the user interface ascx file,
• define additional query terms with the Children filter property (Collection tab).

The resulting query will be in the form +(children) +(template). The %controlID% fragments will be replaced with the value of the corresponding control (see #Example/Tutorials section for a complete comprehensive example).

Template resolution

The defined query template is resolved in different ways depending on the user input and configuration. The following rules apply to every parameter during template resolution:

1. if the user input is empty or contains wildcard only

• the whole term is removed from the template query, ie.: for +_Text:%input% and * or *** or empty as input the resulting query will be empty.

2. paramter is given in the form of "%param%"

• quotation marks are removed from the user input, but otherwise the input is substituted in the markup as-is, without changes.

3. user input is given between quotes (ie. "hello world")

• the input will be substituted in the markup as-is, without changes.

4. user input consists of a single word

• user input is put between quotation marks to allow query for special chars like : and +,
• in case Exact search property is unchecked, the terms will include a wildcard character, ie.: for +_Text:%input% and notexact as input the resulting query will be +_Text:"notexact*".

5. user input consists of multiple words

• user input is put between quotation marks to allow query for special chars like : and +,
• the user input is split along spaces and each word is queried as a separate term, ie.: for +_Text:%input% and multiple words as input the resulting query will be +_Text:"multiple" +_Text:"words",
• in case Exact search property is unchecked, the terms will include a wildcard character, ie.: for +_Text:%input% and notexact as input the resulting query will be +_Text:"notexact*".

If you are uncertain about what query the template has been resolved to for different user inputs, use the Query debug portlet property to display the resolved query in the portlet markup.

Allow empty search

If the Allow empty search property is false, empty resulting query from query template is not allowed. For example if the query template is +_Text:%input% and user input is *, it will be resolved to an empty query expression which is not allowed. However, if the template contains more terms that do not resolve to empty terms, like +_Text:%input% +Type:Car (which will be resolved to +Type:Car for empty user inputs) the resulting query is not considered as empty. To avoid this behavior use only parametric terms in Query Template property, and give static terms in the Children filter property.

If the portlet is configured to disallow empty searches and the template is resolved to an empty query the portlet will show a defined panel to indicate to the user that empty queries are not allowed. This panel should be defined in the input renderer ascx, with the following markup:

<asp:Panel ID="EmptyQueryErrorPanel" runat="server" Visible="false">
Empty queries are not allowed.
</asp:Panel>

User specific parameters

You can use parameters to access properties of logged in user. Syntax is: %user.{property}% (e.g. %user.Language% refers to Language property of user) and it is case sensitive.

Result rendering

To define a custom renderer for rendering results, use the Renderer property (User interface tab).

Properties

Own properties

User interface

Property	Property name for embedding	Possible values	Description
Input Renderer	InputRenderer	path	The form to be rendered for user input

Search

Property	Property name for embedding	Possible values	Description
Query Template	QueryTemplate	text	Parametric query template. Include parameters with %controlID% markup where controlID is the ID of the corresponding asp.Net control in the ascx defined with Input Renderer property.
Exact Search	ExactSearch	true/false	Leave unchecked to automatically add '*' as a suffix to user inputs.
Allow empty search	AllowEmptySearch	true/false	If checked the search will be executed even if the resolved template query is empty.
Query debug	QueryTemplateDebug	true/false	Check this property to show debug info about resolved query template at the bottom of the portlet's layout.

Inherited properties

User interface

Property	Property name for embedding	Possible values	Description
Portlet title	Title	text	Sets the visible title of the current portlet. Title header visibility is controlled with Appearance property
Appearance	ChromeType	Default None TitleAndBorder TitleOnly BorderOnly	Controls title and border visibility. By default both are visible
Renderer	Renderer	path	Select an ASCX or XSLT renderer for rendering portlet output
Custom CSS class(es)	SkinPreFix	text	When set portlet container div appends extra css class(es)

Context binding

Property	Property name for embedding	Possible values	Description
Bind Target	BindTarget	Unselected CurrentContent CurrentSite CurrentPage CurrentUser CurrentStartPage CustomRoot CurrentWorkspace	Select the bound content. Set it to CustomRoot to select a content with absolute path regardless of the context
Custom root path	CustomRootPath	Root relative Repository path	Define bound content with absolute path when Bind Target is set to CustomRoot
Ancestor selector index	AncestorIndex	positive whole number	Set the bound content to the ancestor of Bind Target specified by index. 0 leaves the bound content as specified above, 1 selects parent, higher value selects higher order ancestor
Relative content selector path	RelativeContentPath	relative Repository path	Sets the bound content relative to the above settings with a relative path. Ie.: 'CustomChildFolder/CustomNode' selects 'CustomNode' from Bind Target's 'CustomChildFolder' child folder. Relative to ancestor when Ancestor selector index is set

Collection

Property	Property name for embedding	Possible values	Description
Collection source	CollectionAxis	Children ReferenceProperty VersionHistory External	The source for the listed collection. 'Children' lists child contents of target, 'ReferenceProperty' lists referenced contents using given Reference property, 'VersionHistory' lists target's versions and 'External' uses ids from url parameters as source.
Reference property name	ReferenceAxisName	text	The property name to use as the reference source
Uri parameter name	UriParameterName	text	The Uri parameter name to use as external source
All children	AllChildren	true/false	Leave unchecked if you want to get only direct children of content. Check it if you want to get all children of content.
Children filter	QueryFilter	text	Optional filter for the children query
Sort by	SortBy	text	Sort field name
Sort descending	SortDescending	true/false	Sort results by sort field ascending or descending
Enable paging	PagingEnabled	true/false	Set it to false to list all contents on one page. Set it to true and use the 'Top' parameter to show only a given number of contents simultaneously
Show pager control	ShowPagerControl	true/false	Set to true to show default pager controls at the top and the bottom of results
Top	Top	number	The first given number of contents are listed
Skip first	SkipFirst	number	The first given number of contents are skipped
Enable autofilters	EnableAutofilters	Default Enabled Disabled	If autofilters are enabled, system contents are not shown in the result
Enable lifespan filter	EnableLifespanFilter	Default Enabled Disabled	If lifespan filter is enabled, only contents with valid StartDate and EndDate will be in the result
Visible fields	VisibleFields	text	A comma separated list of fields presented in the list

Example/Tutorials

The following screenshots show an example of using the Parametric search Portlet to define a specific query with the corresponding user friendly interface. First, we will define two input fields for searching Car content - Make and Model. The markup for the user interface looks like this, save it to /Root/System/SystemPlugins/Portlets/ParametricSearch/MyCarSearchForm.ascx:

<%@ Control Language="C#" AutoEventWireup="true" Inherits="System.Web.UI.UserControl"  %>
<div class="sn-inputunit ui-helper-clearfix">
    <div class="sn-iu-label" style="width:100px;"><label class="sn-iu-title">Make:</label></div>
    <asp:TextBox ID="makeInput" runat="server" CssClass="ui-corner-all sn-iu-ctrl" />
</div>
<div class="sn-inputunit ui-helper-clearfix">
    <div class="sn-iu-label" style="width:100px;"><label class="sn-iu-title">Model:</label></div>
    <asp:TextBox ID="modelInput" runat="server" CssClass="ui-corner-all sn-iu-ctrl" />
</div>
<asp:Button ID="btnSearch" runat="server" Text="Search" CssClass="sn-button sn-submit" />
<hr />
Results:

The query that will be executed at each search is defined with the Query Template portlet property and looks the following:

+Make:%makeInput% +Model:%modelInput%

Additional query terms are added to the Children Filter property:

Type:Car

Other portlet properties:

• Uncheck Exact Search.
• Uncheck Allow empty search.
• Set Input Renderer to /Root/System/SystemPlugins/Portlets/ParametricSearch/MyCarSearchForm.ascx.
• Set Context binding to Current Site.
• Collection source should be children.
• Check All children.

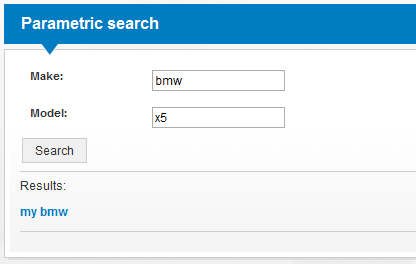

The user interface and results will look the following:

Friendly user interface with Parametric search Portlet

The above input will be compiled to the following Content Query: +(Type:Car) +(+Make:"bmw*" +Model:"x5*").
